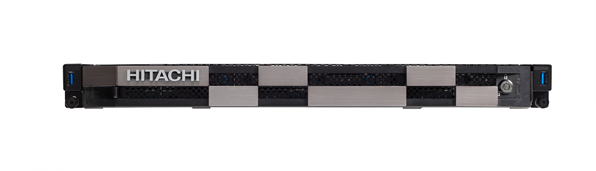

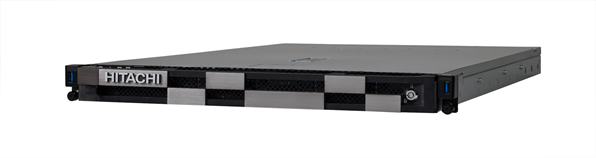

Hitachi Unified Compute Platform HC Series

Experience certainty, reduce risk and improve productivity with Scalable, Simple, and secure hyperconverged appliances.

Read Tech Target White Paper

Automated Hyperconverged Solution

A seamless, scalable and simplified hybrid cloud infrastructure with Hitachi HCI solutions to accelerate innovation and improve productivity.

Automated Hyperconverged IT

Modernize your data center and accelerate your cloud transformation with integrated hyperconverged solutions.

Integrated turnkey appliance powered by VMware vSAN

Faster time to production so you focus more on innovation not on infrastructure.

80% faster provisioning

Faster time to production with Day 0-2 automation of manual steps.

Seamlessly extensibility to SAN

Maximize your storage investments with a seamless workload mobility between HCI and SAN.

Automated firmware upgrades

Non-disruptive upgrades across the HCI stack including networking switches.

Enterprise-grade data protection

Native and optimized data protection to ensure continuous operations.

Streamlined administration

Single point of support for full-stack HCI including hardware, software and virtualization.

Specifications

UCP HC V124N
Configuration All-NVMe flash (Intel Select Solutions* verified)
Form Factor 1 unit (U), 1 node
Processor

Intel Xeon Silver 4210R (10 cores, 2.4 GHz, 100W)

Intel Xeon Gold 6226R (16 cores, 2.90 GHz, 150W)

Intel Xeon Gold 6240R (24 cores, 2.40 GHz, 165W)

Intel Xeon Platinum 8276L (28 cores, 2.20 GHz, 165W)

Raw Storage, per Node 3-80TB
Estimated Usable Capacity 5-210TB
Memory (traditional DIMMs, DDR4) Up to 3.0TB per node
Memory, (Intel Optane DC Persistent Memory 6TB (12 x 512GB) DCPMM with up to  1.5TB  (12 x 128GB) DDR4 Cache
Cache tier Intel Optane SSD DC P4600 (1.6TB) or P4800X 375GB or 750GB
Network

Up to 4 x 10/25 GbE SFP+; or  up to 8 x 10 GbE RJ45 or SFP+; or mix of 4 x 10 and 2 x 25GbE

2 x 100/50/40/25 GbE port Mellanox Connect X5 EN dual port

Management Network One 1Gb/s BMC port
Network Switch Support Customer supplied switch such as Arista, Cisco Nexus or any other switch that meets VMware vSAN requirements
Maximum Node per Cluster 64
Maximum Nodes Manageable per VMware vCenter 2000
Minimum Initial Order 2 node (minimum 4 nodes for Intel Select Solutions*)
Node Increment 1 node
UCP HC V225G
Configuration All-flash, general purpose (GP) GPU-enabled
Form Factor 2U, 1 node
Processor

Intel Xeon Silver 4210R (10 cores, 2.4 GHz, 100W)

Intel Xeon Gold 6256 (12 cores, 3.60 GHz, 205W)

Intel Xeon Gold 6226R (16 cores, 2.90 GHz, 150W)

Intel Xeon Gold 6240R (24 cores, 2.40 GHz, 165W)

Intel Xeon Gold 6242R (20 cores, 3.10 GHz, 205W)

Intel Xeon Gold 6248R (24 cores, 3.00 GHz, 205W)

Or
One or four GP GPU Nvidia Tesla M10
Or
Nvidia Tesla P40
Or
Nvidia Tesla V100 (16GB or 32GB)
Or
Nvidia Turing T4 Tensor Core

Raw Storage, per Node 4-47TB
Estimated Usable Capacity 6-124TB
Memory (traditional DIMMs, DDR4) Up to 1.5TB per node
Memory, (Intel Optane DC Persistent Memory N/A
Cache tier 1x or 2x Intel : Intel SSD DC S4600 960GB
Network

Up to 4 x 10/25 GbE SFP+; or  up to 8 x 10 GbE RJ45 or SFP+; or mix of 4 x 10 and 2 x 25GbE

2 x 100/50/40/25 GbE port Mellanox Connect X5 EN dual port

Management Network One 1Gb/s BMC port
Network Switch Support Customer supplied switch such as  Cisco Nexus or any  other switch that meets vSAN requirements
Maximum Node per Cluster 64
Maximum Nodes Manageable per VMware vCenter 2,000
Minimum Initial Order 2 node (minimum 4 nodes for Intel Select Solutions*)
Node Increment 1 node
UCP HC V220F
Configuration All-flash
Form Factor 2U, 1 node
Processor

Intel Xeon Silver 4210R (10 cores, 2.4 GHz, 100W)

Intel Xeon Gold 6256 (12 cores, 3.60 GHz, 205W)

Intel Xeon Gold 6226R (16 cores, 2.90 GHz, 150W)

Intel Xeon Gold 6240R (24 cores, 2.40 GHz, 165W)

Intel Xeon Gold 6242R (20 cores, 3.10 GHz, 205W)

Intel Xeon Gold 6248R (24 cores, 3.00 GHz, 205W)

Raw Storage, per Node 2-193TB
Estimated Usable Capacity 204-328TB
Memory (traditional DIMMs, DDR4) Up to 3.0TB per node
Memory, (Intel Optane DC Persistent Memory 6TB (12 x 512GB) DCPMM with up to  1.5TB  (12 x 128GB) DDR4 Cache
Cache tier Up to 8TB Intel SSD DC  P4600 (NVMe) or up to 3.75GB Intel Optane SSD DC P4800X
Network

Up to 4 x 10/25 GbE SFP+; or  up to 8 x 10 GbE RJ45 or SFP+; or mix of 4 x 10 and 2 x 25GbE

2 x 100/50/40/25 GbE port Mellanox Connect X5 EN dual port

Management Network One 1Gb/s BMC port
Network Switch Support Customer supplied switch such as  Cisco Nexus or any  other switch that meets vSAN requirements
Maximum Node per Cluster 64
Maximum Nodes Manageable per VMware vCenter 2,000
Minimum Initial Order 2 node (minimum 4 nodes for Intel Select Solutions*)
Node Increment 1 node
UCP HC V120F
Configuration All-flash (Intel Select Solutions* verified)
Form Factor 1U, 1 node
Processor

 Intel Xeon Silver 4210R (10 cores, 2.4 GHz, 100W)

Intel Xeon Gold 6226R (16 cores, 2.90 GHz, 150W)

Intel Xeon Gold 6240R (24 cores, 2.40 GHz, 165W)

Intel Xeon Platinum 8276L (28 cores, 2.20 GHz, 165W)

Raw Storage, per Node 4-77TB
Estimated Usable Capacity 7-200TB
Memory (traditional DIMMs, DDR4) Up to 3.0TB per node
Memory, (Intel Optane DC Persistent Memory 6TB (12 x 512GB) DCPMM with up to  1.5TB  (12 x 128GB) DDR4 Cache
Cache tier Intel Optane SSD DC P4800X Series (375 or 750GB, 2.5 in.,. U.2)
or
800Gb - 1.6TB NVMe SSD
Network

Up to 4 x 10/25 GbE SFP+; or  up to 8 x 10 GbE RJ45 or SFP+; or mix of 4 x 10 and 2 x 25GbE

2 x 100/50/40/25 GbE port Mellanox Connect X5 EN dual port

Management Network One 1Gb/s BMC port
Network Switch Support Customer supplied switch such as  Cisco Nexus or any  other switch that meets vSAN requirements
Maximum Node per Cluster 64
Maximum Nodes Manageable per VMware vCenter 2,000
Minimum Initial Order 2 node (minimum 4 nodes for Intel Select Solutions*)
Node Increment 1 node
UCP HC V120
Configuration Hybrid
Form Factor 1U, 1 node
Processor

Intel Xeon Silver 4210R (10 cores, 2.4 GHz, 100W)

Intel Xeon Gold 6226R (16 cores, 2.90 GHz, 150W)

Intel Xeon Gold 6240R (24 cores, 2.40 GHz, 165W)

Intel Xeon Platinum 8276L (28 cores, 2.20 GHz, 165W)

Raw Storage, per Node 2-18TB
Estimated Usable Capacity 1-9TB
Memory (traditional DIMMs, DDR4) Up to 3.0TB per node
Memory, (Intel Optane DC Persistent Memory 6TB (12 x 512GB) DCPMM with up to  1.5TB  (12 x 128GB) DDR4 Cache
Cache tier 1-2 x 960GB
Network

Up to 4 x 10/25 GbE SFP+; or  up to 8 x 10 GbE RJ45 or SFP+; or mix of 4 x 10 and 2 x 25GbE

2 x 100/50/40/25 GbE port Mellanox Connect X5 EN dual port

Management Network One 1Gb/s BMC port
Network Switch Support Customer supplied switch such as  Cisco Nexus or any  other switch that meets vSAN requirements
Maximum Node per Cluster 64
Maximum Nodes Manageable per VMware vCenter 2,000
Minimum Initial Order 2 node (minimum 4 nodes for Intel Select Solutions*)
Node Increment 1 node
UCP HC V220
Configuration Hybrid
Form Factor 2U, 1 node
Processor

Intel Xeon Silver 4210R (10 cores, 2.4 GHz, 100W)

Intel Xeon Gold 6256 (12 cores, 3.60 GHz, 205W)

Intel Xeon Gold 6226R (16 cores, 2.90 GHz, 150W)

Intel Xeon Gold 6240R (24 cores, 2.40 GHz, 165W)

Intel Xeon Gold 6242R (20 cores, 3.10 GHz, 205W)

Intel Xeon Gold 6248R (24 cores, 3.00 GHz, 205W)

Raw Storage, per Node 12-64TB
Estimated Usable Capacity 6-32TB
Memory (traditional DIMMs, DDR4) Up to 3TB per node
Memory, (Intel Optane DC Persistent Memory 6TB (12 x 512GB) DCPMM with up to  1.5TB  (12 x 128GB) DDR4 Cache
Cache tier 480GB SATA SSD (1x to 4x) or 960GB SATA SSD (1x to 4x)
Network

Up to 4 x 10/25 GbE SFP+; or  up to 8 x 10 GbE RJ45 or SFP+; or mix of 4 x 10 and 2 x 25GbE

2 x 100/50/40/25 GbE port Mellanox Connect X5 EN dual port

Management Network One 1Gb/s BMC port
Network Switch Support Customer supplied switch such as  Cisco Nexus or any  other switch that meets vSAN requirements
Maximum Node per Cluster 64
Maximum Nodes Manageable per VMware vCenter 2000
Minimum Initial Order 2 node (minimum 4 nodes for Intel Select Solutions*)
Node Increment 1 node
